SURGICAL TROCARS



Complete range for diverse application.





SoftFix™ BALLOON TROCAR







  CLICK-IN DESIGN

-    Obturator with click in design for secure and stable trocar insertion.



  UNIVERSAL SEAL

-    Universal seals in different dimensions accommodate a wide range of instrument sizes.



  DETACHABLE CAP

-    Detachable cannula cap for easy tissue removal.



  ANCHOR GRIP WITH GEL FIXATION

-    Provides atraumatic and air-tight external fixation.

-    Allows single hand adjustment of cannula depth and the stay of sutures.



  CLEAR OBTURATOR

-    Allows unblocked view of endoscope.



  SoftFix™ BALLOON

-    Latex-free balloon enhances internal stabilization and minimizes fascial trauma.

-    Minimal protrusion of cannula tip ensures maximum working length.

-    Ring fixation option available.






OPTICAL TROCAR



❶  Clear tip allows direct visualization of abdominal wall layers.






BLADELESS TROCAR



❶  Fin-design tip for better insertion.







BLADED TROCAR



    Sharp flat blade and pointed shield for easy insertion and less fascial trauma.

     Safety button for protection shield.






HASSON TROCAR



❶  Blunt tip reduces the risk of damage to viscera.

❷  Easy-to-use anchor grip allows single hand adjustment of cannula depth as well as stay of suture.






SECONDARY TROCAR



Sharp pyramidal tip allows easy insertion.

❷  Airtight valve ensures leak-free instrument exchange.

Cost-effective option.

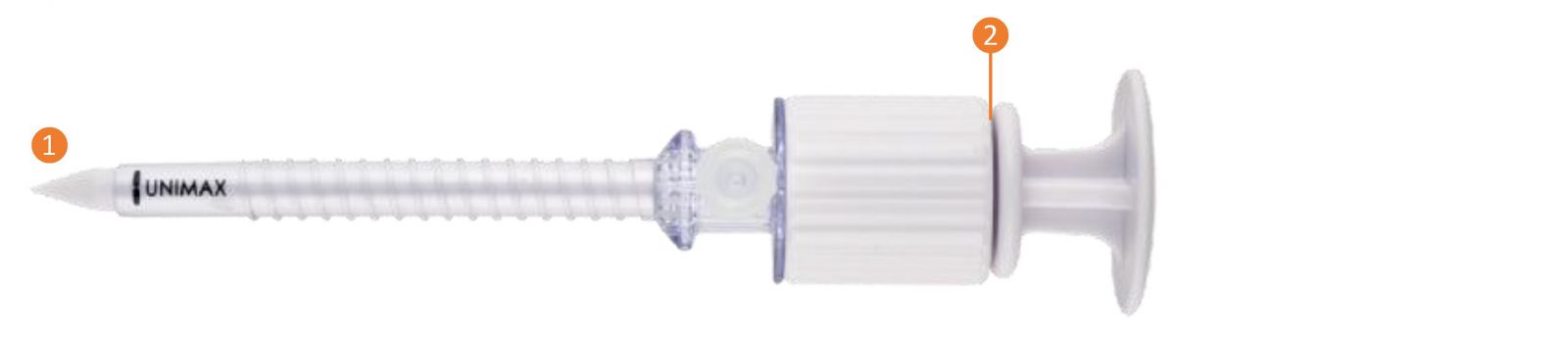

THORACIC TROCAR



Threaded cannula enhances stability when exchanging instruments.

Blunt tip obturator prevents damage on the internal structure.









SURGICAL TROCARS



Complete range for diverse application.





SoftFix™ BALLOON TROCAR







  CLICK-IN DESIGN

-    Obturator with click in design for secure and stable trocar insertion.



  UNIVERSAL SEAL

-    Universal seals in different dimensions accommodate a wide range of instrument sizes.



  DETACHABLE CAP

-    Detachable cannula cap for easy tissue removal.



  ANCHOR GRIP WITH GEL FIXATION

-    Provides atraumatic and air-tight external fixation.

-    Allows single hand adjustment of cannula depth and the stay of sutures.



  CLEAR OBTURATOR

-    Allows unblocked view of endoscope.



  SoftFix™ BALLOON

-    Latex-free balloon enhances internal stabilization and minimizes fascial trauma.

-    Minimal protrusion of cannula tip ensures maximum working length.

-    Ring fixation option available.






OPTICAL TROCAR



❶  Clear tip allows direct visualization of abdominal wall layers.






BLADELESS TROCAR



❶  Fin-design tip for better insertion.







BLADED TROCAR



    Sharp flat blade and pointed shield for easy insertion and less fascial trauma.

     Safety button for protection shield.






HASSON TROCAR



❶  Blunt tip reduces the risk of damage to viscera.

❷  Easy-to-use anchor grip allows single hand adjustment of cannula depth as well as stay of suture.






SECONDARY TROCAR



Sharp pyramidal tip allows easy insertion.

❷  Airtight valve ensures leak-free instrument exchange.

Cost-effective option.




THORACIC TROCAR



Threaded cannula enhances stability when exchanging instruments.

Blunt tip obturator prevents damage on the internal structure.





CODE  DESCRIPTION   PACKAGING

Softfix™-  Optical
FBT105070 Softfix™ Balloon Optical Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT105100 Softfix™ Balloon Optical Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT110100 Softfix™ Balloon Optical Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT11210R Softfix™ Balloon Optical Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT112100 Softfix™ Balloon OpticalTrocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Bladed(Auto Locking)
FBT505070 Softfix™ Balloon Bladed Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT505100 Softfix™ Balloon Bladed Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT510100 Softfix™ Balloon Bladed Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT51210R Softfix™ Balloon Bladed Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT512100 Softfix™ Balloon Bladed Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Bladeless
FBT605070 Softfix™ Balloon Bladeless Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT605100 Softfix™ Balloon Bladeless Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT610100 Softfix™ Balloon Bladeless Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT61210R Softfix™ Balloon Bladeless Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT612100 Softfix™ Balloon Bladeless Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Hasson
FBT710100 Softfix™ Balloon Hasson Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT71210R Softfix™ Balloon Hasson Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT712100 Softfix™ Balloon Hasson Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Optical Trocar
FVTD10100 Optical Trocar with Built-In Universal Seal 11mm/10cm (Pistol Handle)   5 pcs/box
FVTD12100 Optical Trocar with Built-In Universal Seal 12mm/10cm (Pistol Handle)   5 pcs/box
FVT705070 Optical Trocar 5mm/7cm  (Non-Pistol Version)   5 pcs/box
FVT705100 Optical Trocar 5mm/10cm (Non-Pistol Version)      5 pcs/box
FVT705150 Optical Trocar 5mm/15cm (Non-Pistol Version)      5 pcs/box
FVT710100 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/10cm   5 pcs/box
FVT712100 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/10cm   5 pcs/box
FVT710750 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/7.5cm   5 pcs/box
FVT712750 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/7.5cm   5 pcs/box
FVT710150 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/15cm   5 pcs/box
FVT712150 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/15cm   5 pcs/box

Bladed (Auto Locking) Trocar
FSTD05070 Bladed (Auto Locking) Trocar 5mm/7cm   5 pcs/box
FSTD05100 Bladed (Auto Locking) Trocar 5mm/10cm   5 pcs/box
FSTD05150 Bladed (Auto Locking) Trocar 5mm/15cm   5pcs/box
FSTD10100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FSTD12100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FSTD10150 Bladed (Auto Locking) Trocar with Built-In Universal Seal 11mm/15cm   5 pcs/box
FSTD12150 Bladed (Auto Locking) Trocar with Built-In Universal Seal 12mm/15cm   5 pcs/box
FSTD15100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Bladless Trocar
FPT303060 Bladeless Trocar 3mm/6cm   20pcs/box
FPTD05070 Bladeless Trocar 5mm/7cm   5 pcs/box
FPTD05100 Bladeless Trocar 5mm/10cm   5 pcs/box
FPTD10100 Bladeless Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FPTD12100 Bladeless Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FPTD10150 Bladeless Trocar with Built-In Universal Seal 11mm/15cm   5 pcs/box
FPTD12150 Bladeless Trocar with Built-In Universal Seal 12mm/15cm   5 pcs/box
FPTD15100 Bladeless Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Hasson Trocar
FHTD10100 Hasson Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FHTD12100 Hasson Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FHTD15100 Hasson  Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Secondary Trocar
FPT805071 Secondary Bladeless Trocar (Plastic) 5mm/7cm   5 pcs/box

Thoracic Trocar
FTT106070 Thoracic Trocar 6mm/7cm   10 pcs/box
FTT111070 Thoracic Trocar 11mm/7cm   10 pcs/box
FTT113070 Thoracic Trocar 13mm/7cm   10 pcs/box
FTT115070 Thoracic Trocar 15mm/7cm   10 pcs/box
CODE  DESCRIPTION   PACKAGING

Softfix™- Optical
FBT105070 Softfix™ Balloon Optical Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT105100 Softfix™ Balloon Optical Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT110100 Softfix™ Balloon Optical Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT11210R Softfix™ Balloon Optical Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT112100 Softfix™ Balloon Optical Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Bladed(Auto Locking)
FBT505070 Softfix™ Balloon Bladed Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT505100 Softfix™ Balloon Bladed Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT510100 Softfix™ Balloon Bladed Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT51210R Softfix™ Balloon Bladed Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT512100 Softfix™ Balloon Bladed Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Bladeless
FBT605070 Softfix™ Balloon Bladeless Trocar with Ring Fixation 5mm/7cm   5 pcs/box
FBT605100 Softfix™ Balloon Bladeless Trocar with Ring Fixation 5mm/10cm   5 pcs/box
FBT610100 Softfix™ Balloon Bladeless Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT61210R Softfix™ Balloon Bladeless Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT612100 Softfix™ Balloon Bladeless Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Softfix™- Hasson
FBT710100 Softfix™ Balloon Hasson Trocar with Ring Fixation 11mm/10cm   5 pcs/box
FBT71210R Softfix™ Balloon Hasson Trocar with Ring Fixation 12mm/10cm   5 pcs/box
FBT712100 Softfix™ Balloon Hasson Trocar with Anchor Grip 12mm/10cm   5 pcs/box

Optical Trocar
FVTD10100 Optical Trocar with Built-In Universal Seal 11mm/10cm (Pistol Handle)   5 pcs/box
FVTD12100 Optical Trocar with Built-In Universal Seal 12mm/10cm (Pistol Handle)   5 pcs/box
FVT705070 Optical Trocar 5mm/7cm  (Non-Pistol Version)   5 pcs/box
FVT705100 Optical Trocar 5mm/10cm (Non-Pistol Version)      5 pcs/box
FVT705150 Optical Trocar 5mm/15cm (Non-Pistol Version)      5 pcs/box
FVT710100 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/10cm   5 pcs/box
FVT712100 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/10cm   5 pcs/box
FVT710750 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/7.5cm   5 pcs/box
FVT712750 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/7.5cm   5 pcs/box
FVT710150 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 11mm/15cm   5 pcs/box
FVT712150 Optical Trocar with Built-In Universal Seal (Non-Pistol Version) 12mm/15cm   5 pcs/box

Bladed (Auto Locking) Trocar
FSTD05070 Bladed (Auto Locking) Trocar 5mm/7cm   5 pcs/box
FSTD05100 Bladed (Auto Locking) Trocar 5mm/10cm   5 pcs/box
FSTD05150 Bladed (Auto Locking) Trocar 5mm/15cm   5pcs/box
FSTD10100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FSTD12100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FSTD10150 Bladed (Auto Locking) Trocar with Built-In Universal Seal 11mm/15cm   5 pcs/box
FSTD12150 Bladed (Auto Locking) Trocar with Built-In Universal Seal 12mm/15cm   5 pcs/box
FSTD15100 Bladed (Auto Locking) Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Bladless Trocar
FPT303060 Bladeless Trocar 3mm/6cm   20pcs/box
FPTD05070 Bladeless Trocar 5mm/7cm   5 pcs/box
FPTD05100 Bladeless Trocar 5mm/10cm   5 pcs/box
FPTD10100 Bladeless Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FPTD12100 Bladeless Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FPTD10150 Bladeless Trocar with Built-In Universal Seal 11mm/15cm   5 pcs/box
FPTD12150 Bladeless Trocar with Built-In Universal Seal 12mm/15cm   5 pcs/box
FPTD15100 Bladeless Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Hasson Trocar
FHTD10100 Hasson Trocar with Built-In Universal Seal 11mm/10cm   5 pcs/box
FHTD12100 Hasson Trocar with Built-In Universal Seal 12mm/10cm   5 pcs/box
FHTD15100 Hasson  Trocar with Built-In Universal Seal 15mm/10cm   10 pcs/box

Secondary Trocar
FPT805071 Secondary Bladeless Trocar (Plastic) 5mm/7cm   5 pcs/box

Thoracic Trocar
FTT106070 Thoracic Trocar 6mm/7cm   10 pcs/box
FTT111070 Thoracic Trocar 11mm/7cm   10 pcs/box
FTT113070 Thoracic Trocar 13mm/7cm   10 pcs/box
FTT115070 Thoracic Trocar 15mm/7cm   10 pcs/box

Symbols Glossary





The device is a medical device as defined in MDR 2017/745.



The device should not be used if the package has been damaged or opened.



Symbols Glossary





The device is a medical device as defined in MDR 2017/745.



The device should not be used if the package has been damaged or opened.
